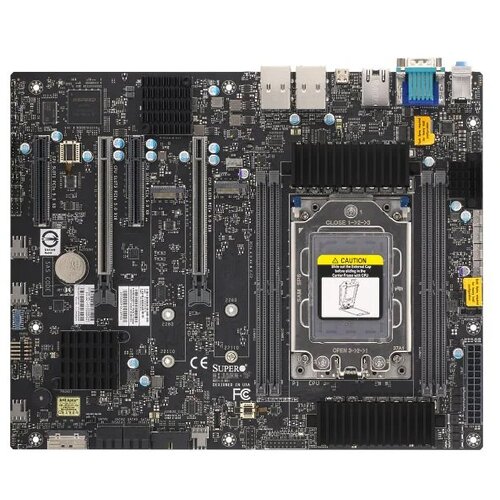

Supermicro MBD-H13SRA-F AMD TRX50 Socket sTR5 ATX cijene

Processor
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series

Graphics
Parallel processing technology support: Not supported

Features
Component for: Workstation
Audio chip: Realtek ALC888S
Motherboard chipset family: AMD
Motherboard chipset: AMD TRX50
Audio output channels: 5.1 channels
Motherboard form factor: ATX

Memory
Supported memory clock speed (max): 5200 MHz
ECC ompatibility: ECC
Maximum internal memory: 4 TB
Supported memory module capacities: 96GB, 32GB, 128GB, 24GB, 1024GB, 48GB, 512GB, 64GB, 256GB, 16GB
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Supported memory clock speeds: 5200
Memory slots type: DIMM
Memory voltage: 1.1 V

Operational conditions
Operating temperature (TT): 20 60 C
Storage temperature (TT): 0 50 C
Operating relative humidity (HH): 10 85%
Storage relative humidity (HH): 10 95%

Weight & dimensions
Depth: 243.8 mm
Width: 304.8 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No
LAN controller: Broadcom BCM5720

Internal I/O
USB 2.0 connectors: 2
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 7

BIOS
BIOS type: AMI
BIOS memory size: 32 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.6

Storage controllers
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 3.2 Gen 2x2 TypeC ports quantity: 1
VGA (DSub) ports quantity: 1
Ethernet LAN (RJ45) ports: 2
IPMI LAN (RJ45) port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
COM ports quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
