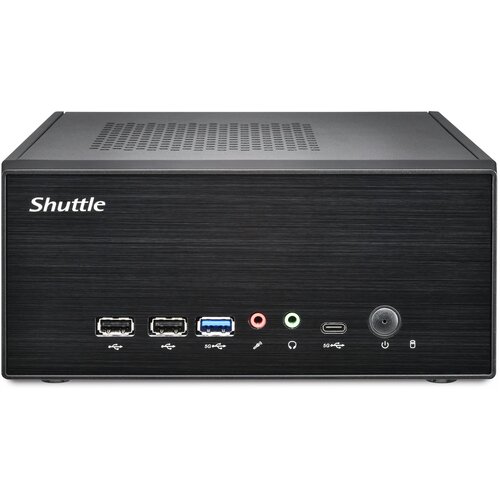

Shuttle XPC slim Barebone XB860G2 - S1851, Intel H860, 1xDP, 2xHDMI, 2 PCIe Slots (1x 16X & 1x X1), 2x Intel LAN (1G + 2.5G), 8x USB, 3x M.2, 24 /7 permanent operation cijene

Technical details
Compliance certificates: BSMI, RoHS, CE, RCM, VCCI, UKCA, Federal Communications Commission (FCC)

Processor
Builtin processor: No

Graphics
Onboard graphics card: Yes

Memory
Memory channels: Dualchannel
Supported memory types: DDR5SDRAM
Memory slots type: SODIMM
NonECC: Yes
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Number of memory slots: 2
Internal memory installed: No
Memory voltage: 1.1 V

Design
Product colour: Black
Product type: PC barebone
Cable lock slot type: Kensington
VESA mounting: Yes
Chassis type: 3.5L sized PC
Cooling type: Active
LED indicators: HDD, Power
Cable lock slot: Yes
Panel mounting interface: 75 x 75,100 x 100 mm

Power
AC input frequency: 50/60 Hz
Power supply: 180 W
AC input voltage: 100 240 V
Power supply type: External AC adapter
AC adapter output current: 9.23 A
AC adapter output voltage: 19.5 V
Number of power supply units: 1

Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 50 C

Weight & dimensions
Height: 72.5 mm
Package weight: 3.2 kg
Weight: 1.9 kg
Depth: 200 mm
Width: 238 mm

Network
WiFi: No
Ethernet LAN: Yes
LAN controller: Intel I219LM, Intel I226LM

Performance
Trusted Platform Module (TPM): Yes
Motherboard chipset: Intel B860
Audio chip: Realtek ALC888S
BIOS type: UEFI AMI
Motherboard form factor: mini ITX
Number of processors supported: 1
Trusted Platform Module (TPM) version: 2.0
Processor socket: LGA 1851 (Socket V1)

Packaging content
Quick start guide: Yes
AC adapter included: Yes
Drivers included: Yes
Power cord included: Yes

Audio
Builtin speaker(s): No

Storage
Supported storage drive types: SSD
Number of storage drives supported: 3
Storage drives installed: No
Storage drive interface: PCI Express
NVMe: Yes
SSD form factor: M.2
Storage drive sizes supported: M.2

Ports & interfaces
DCin jack: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
HDMI version: 2.0/2.1
DisplayPort version: 1.4a
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
HDMI ports quantity: 2
Microphone in: Yes
USB 2.0 ports quantity: 2
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
Ethernet LAN (RJ45) ports: 2

Logistics data
Harmonized System (HS) code: 84733080

Sustainability
Sustainability certificates: ENERGY STAR, ErP
