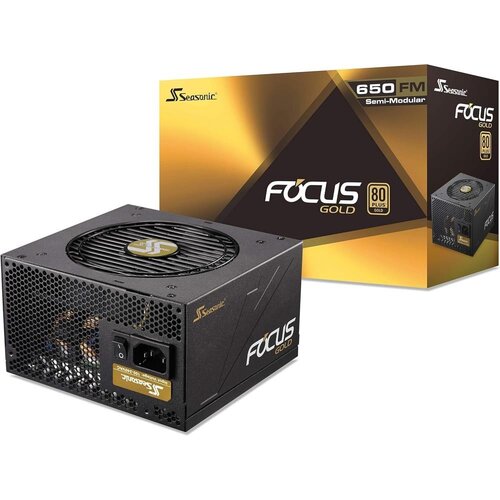

Seasonic Focus Gold 650 power supply unit 650 W 20+4 pin ATX ATX Black cijene

Technical details
Sustainability certificates: ENERGY STAR

Design
Fan location: Top
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)

Power
Combined power (12V): 3.6 W
Combined power (+12V): 648 W
Max output current (+5Vsb): 3 A
Power protection features: Short circuit, Over voltage, Over power, Overcharge, Overheating, Under voltage
Combined power (+5V): 100 W
Input current: 4.5 9 A
AC input frequency: 50 60 Hz
Max output current (+12V): 54 A
Max output current (12V): 0.3 A
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Total power: 650 W
AC input voltage: 100 240 V

Operational conditions
Operating temperature (TT): 0 50 C

Weight & dimensions
Depth: 140 mm
Width: 150 mm
Height: 86 mm

Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Mean time between failures (MTBF): 100000 h
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX

Packaging data
Cable storage bag included: Yes
Case badge included: Yes
Manual: Yes
Package type: Box
Number of straps: 3

Packaging content
Cables included: AC
Certification: WEEE, ErP Lot 6, REACH

Certificates
Compliance certificates: RoHS

Ports & interfaces
Floppy disk drive connector: Yes
Cabling type: SemiModular
Peripheral (Molex) power connectors (4pin): 3
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 6
ATX power connector (20+4 pin): Yes
Floppy disk drive cable length: 10.1 cm
Floppy drive power connector: 1
Motherboard power cable length: 61 cm
CPU power cable length: 65 cm
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX

Other features
Number of screws: 4
Warranty card: Yes
Screws included: Yes
Cable ties included: Yes

Safety regulation & standards
Safety: cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
