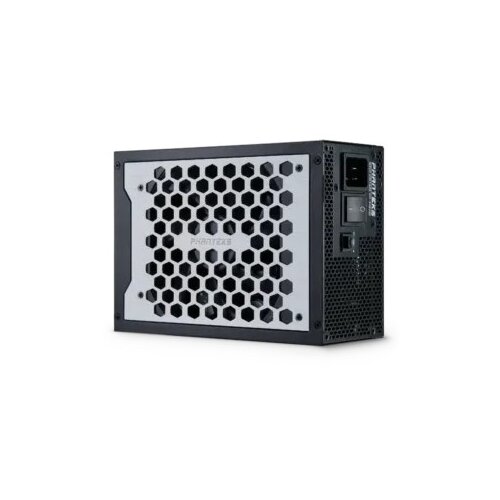

Phanteks Revolt power supply unit 1600 W ATX Black cijene

Technical details
Warranty period: 12 year(s)

Design
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Fan diameter: 13.5 cm
On/off switch: Yes

Power
Input current: 15 10 A
AC input frequency: 50/60 Hz
Max output current (12V): 0.5 A
Combined power (12V): 6 W
Power protection features: Overcharge, Short circuit, Overheating, Over power, Over current
Maximum input current (@110V): 15 A
AC input voltage: 100 240 V
Combined power (+5Vsb): 15 W
Total power: 1600 W
Max output current (+5V): 25 A
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Max output current (+5Vsb): 3 A
Combined power (+3.3V): 125 W
Max output current (+12V): 133.33 A
Maximum input current (@220V): 10 A
Combined power (+12V): 1600 W

Weight & dimensions
Height: 86 mm
Width: 210 mm
Depth: 150 mm
Weight: 3.22 kg

Performance
80 PLUS certification: 80 PLUS Titanium
Power supply unit (PSU) form factor: ATX
Purpose: PC
Mean time between failures (MTBF): 100000 h

Packaging data
Package weight: 3.67 kg
Package type: Box

Ports & interfaces
Cabling type: FullyModular
PCI Express connector: Yes

Safety warning
Hazard pictogram(s): GHS09: Environmental hazard, GHS02: Flammable, GHS07: Harmful
