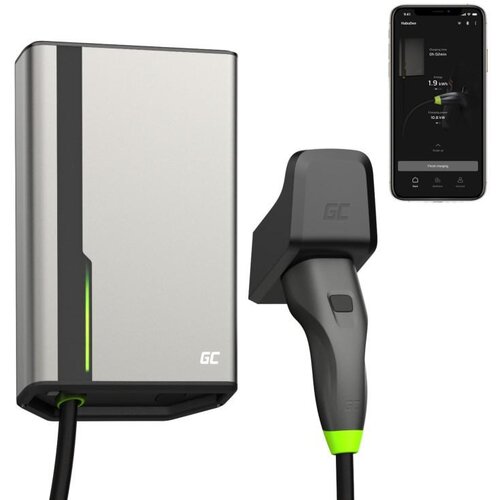

Green cell EVGC021A2250 electric vehicle charging station Grey Aluminium Wall 3 Built-in display LED cijene

Technical details
Warranty period: 2 year(s)
Certification: IEC 62196, IEC 62752, IEC 60309, EN 300 2201/2, EN 300 328, EN 301 4891/17, EN 301 4891/3, EN 301 4891/52, EN 301 511

Features
Vehicle connection plug: Type 2
Over current protection: Yes
Mechanical impact protection code: IK10
Firmware upgradeable: Yes
Vehicle charging standard: Mode 3
Direct current failure monitoring: Yes
International Protection (IP) code: IP54
WiFi: Yes

Design
Cable colour: Black
Integrated charging cable: Yes
Display technology: LED
LED indicators: Charging, Activity, Error, Power, Fault
Housing material: Aluminium
Builtin display: Yes
Product colour: Grey
Integrated energy meter: Yes
Mounting type: Wall

Power
Maximum operating current (threephase): 32 A
Maximum operating power (singlephase): 7.2 kW
Number of phases: 3
Singlephase output voltage supported: 230 V
Maximum operating current per phase: 32 A
Maximum operating power (threephase): 22 kW
Threephase output voltage supported: 400 V
Maximum charging power: 22000 W
Power source type: AC
Minimum operating power (singlephase): 1.4 kW

Weight & dimensions
Charging cable length: 5 m
Height: 338 mm
Width: 211 mm
Depth: 73 mm
Weight: 5.51 kg
