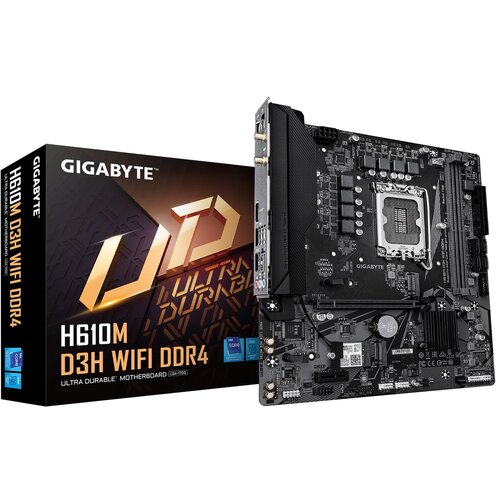

Gigabyte H610M D3H WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, WIFI 5, 1GbE LAN, USB 3.2 Gen 1 cijene

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel Pentium, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 12th Gen, Intel Celeron, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i3 14th Gen, Intel Core i9 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Product colour: Dark brown
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Component for: PC
Cooling type: Passive
PC health monitoring: Water cooling, Fan, Temperature, Voltage
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Motherboard chipset: Intel H610
Power source type: ATX

Memory
Supported memory clock speeds: 3200, 2666, 3000, 2133, 2400, 2933
ECC ompatibility: ECC & NonECC
Supported memory clock speed (max): 3200 MHz
Number of memory slots: 2
Supported memory types: DDR4SDRAM
Maximum internal memory per slot: 32 GB
Memory channels: Dualchannel
Memory slots type: DIMM
Unbuffered memory: Yes
Maximum internal memory: 64 GB

Weight & dimensions
Height: 35 mm
Width: 244 mm
Depth: 220 mm

Network
Bluetooth: Yes
LAN controller: Realtek RTL8111H
Bluetooth version: 5.1
Ethernet interface type: Gigabit Ethernet
WiFi standards: 802.11a, 802.11b, WiFi 5 (802.11ac), 802.11g, WiFi 4 (802.11n)
Ethernet LAN: Yes
WLAN controller model: Intel Dual Band WirelessAC 9560
WiFi: Yes
Top WiFi standard: WiFi 5 (802.11ac)

Internal I/O
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 2
EPS power connector (8pin): Yes
Number of EPS power connectors (8pin): 1
RGB LED pin header: Yes
Front panel connector: Yes
TPM connector: Yes
ATX Power connector (24pin): Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 2
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Serial port headers: 1

BIOS
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI

Packaging data
Package depth: 268 mm
Package width: 270 mm
Package height: 68 mm
Package weight: 1.06 kg
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Antenna included: Yes
Screws included: Yes
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Microphone in: Yes
Linein: Yes
PS/2 ports quantity: 2
HDMI version: 2.1
WiFiAP antenna jack: 2
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ45) ports: 1

Expansion slots
1st M.2 highest PCI Express generation: 3.0
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2

Battery
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery type: CR2032
Battery technology: LithiumManganese Dioxide (LiMnO2)
Number of battery cells: 1

Other features
Weight: 930 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
