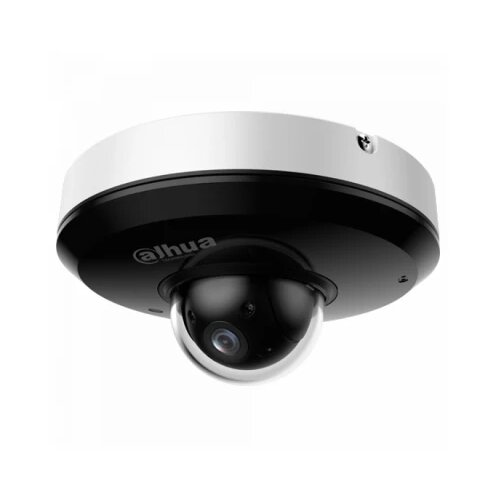

Dahua Technology SD1A404DB-GNY Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling /wall cijene

Design
IK code: IK08
LED indicators: Yes
Product colour: Black, White
International Protection (IP) code: IP66
Form factor: Dome
Mounting type: Ceiling/wall

Power
Power consumption (max): 13 W
Power consumption (typical): 4 W
Power source type: DC, PoE

Security
Alarm input channels: 1
Alarm output channels: 1
Intelligent Video Surveillance (IVS) system features: Crossing line, Abandoned object, Face detection, Tripwire, Missing object
Video motion detection: Yes

Operational conditions
Operating temperature (TT): 30 60 C
Operating relative humidity (HH): 0 95%

Management features
Webbased management: Yes
Management software: DMSS; DSS Pro

Weight & dimensions
Diameter: 12.8 cm
Height: 65.7 mm
Weight: 500 g

Network
Bluetooth: No
WiFi: No
Ethernet LAN: Yes
Number of users: 20 user(s)

System requirements
Mobile operating systems supported: Android, iOS
Certification: CEEMC: EN 55032; EN 6100033; EN 6100032; EN 501304; EN 55035 CELVD: EN 623681 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Performance
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
PTZ modes: Preset point, 8 Tour
PTZ protocols: DHSD
Connectivity technology: Wired
Type: IP security camera
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Preset points: Yes

Packaging data
Package weight: 700 g

Packaging content
Number of cameras: 1

Audio
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio detection: Yes

Storage
Builtin HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
ROM capacity: 256 MB
RAM capacity: 512 MB

Ports & interfaces
Ethernet LAN (RJ45) ports: 1

Camera
White balance: Street lamp, Indoor, Outdoor, Manual, Sodium lamp, Natural
Tilt preset speed: 0.1 /sec
Minimum illumination: 0.0005 lx
Pan preset speed: 0.1 /sec
Tilt angle range: 5 90
Camera shutter speed: 1 1/30000 s
Camera shutter type: Electronic
Pan range: 0 355
Camera pan control: Yes
Pan manual speed: 0.1 70 /sec
Camera tilt control: Yes
Tilt manual speed: 0.1 30 /sec

Image sensor
Optical sensor size: 25.4 / 28 mm (1 / 28")
Progressive scan: Yes
Sensor type: CMOS

Video
Frame rate: 30 fps
Supported graphics resolutions: 640 x 480 (VGA), 352 x 288, 704 x 480, 1920 x 1080 (HD 1080), 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 1280 x 720 (HD 720), 2560 x 1440
Noise reduction: Yes
Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Video compression formats: H.264+, H.264, H.264H, H.265+, MJPEG, H.264B, H.265
Video streaming: Yes
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image stabilizer: Yes

Night vision
LED type: IR
Night vision distance: 20 m
Infrared LEDs life: 3 h
Night vision: Yes

Lens system
Detect distance (wide): 240 m
Focal length range: 2.8 12 mm
Optical zoom: 4x
Digital zoom: 16x
Maximum aperture number: 2.7
Minimum aperture number: 1.8
Identify distance (wide): 24 m
Observe distance (wide): 94.8 m
Number of lenses: 1
Recognize distance (wide): 48 m
Auto focus: Yes
Closest focusing distance: 0.2 m
Focus: Motorized/Manual

Panoramic camera
SignaltoNoise Ratio (SNR) (panoramic camera): 55 dB
