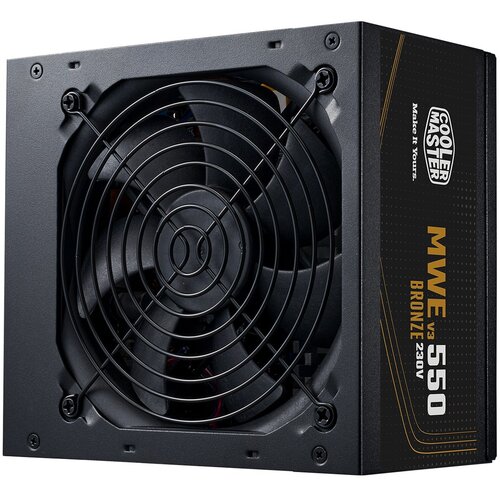

Cooler Master MWE Bronze 550 V3 230V power supply unit 550 W 24-pin ATX ATX Black cijene

Design
Product colour: Black
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm

Power
Power Good signal delay range: 100 500 ms
Max output current (+5Vsb): 3 A
Combined power (12V): 3.6 W
AC input voltage: 200 240 V
Combined power (+5Vsb): 15 W
Efficiency: 88%
AC input frequency: 50/60 Hz
Power protection features: Over power, Under voltage, Short circuit, Over voltage
Total power: 550 W
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Combined power (+3.3V): 110 W
Combined power (+12V): 540 W
Combined power (+5V): 110 W
Max output current (12V): 0.3 A
Input current: 5 A
Max output current (+3.3V): 17 A
Max output current (+12V): 45 A

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Width: 150 mm
Weight: 1.45 kg
Depth: 140 mm
Height: 86 mm

Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: HDB
ATX version: 3.1

Packaging data
Package height: 110 mm
Package type: Box
Package width: 245 mm
Package weight: 1.85 kg
Package depth: 190 mm

Certificates
Compliance certificates: UKCA, RoHS, CE, China Compulsory Certification (CCC), EAC, KC, RCM, BIS, Federal Communications Commission (FCC), TV mark

Ports & interfaces
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 700 mm, 400, 550
Motherboard power connector: 24pin ATX
Number of SATA power connectors: 6
Cabling type: NonModular
Motherboard power cable length: 50 cm
SATA power cable length: 700, 550, 400
Peripheral (Molex) power connectors (4pin): 3
PCI Express power connectors (6+2 pin): 2
ATX Power connector (24pin): Yes
