Blackmagic PYXIS Monitor Kit

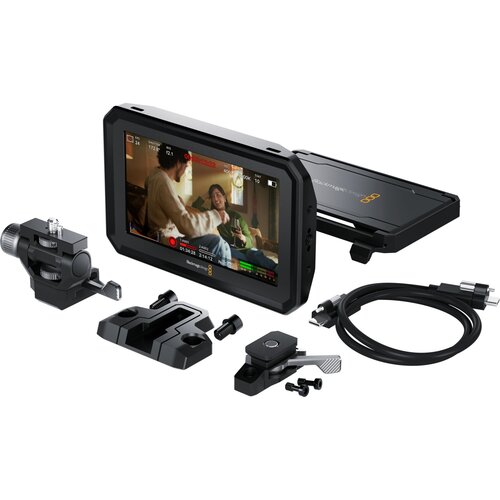

The Blackmagic PYXIS Monitor is a versatile 5inch HDR touchscreen monitor with full camera control that can be mounted almost anywhere. The Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, lockingUSB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.

Features:

• Display size: 5 inch (12.7 cm)
• Display resolution: 1920 x 1080 Full HD
• Display type: Capacitive LCD touchscreen
• Display brightness: 1500 nits
• Frame rates: Up to 60fps.
• Tally: Rearfacing LED indicator light
• Accelerometer: Automatically rotates image when the monitor is mounted upside down
• Power supply via USBC
• Operating temperature: 0 to 40 °C (32 to 104 °F)
• Connections:  USBC with locking connector for video, power, data and software updates.
• Controls
  • Frame rate, shutter, aperture, time code, ISO, white balance, colour tone, power, recording start/stop, media, audio, focus zoom, digital panel and camera menus
• Button control
  • Contains assignable functions F1, F2, F3 buttons to recall preset parameters or toggle functions
• Mounting points:
  • 1 x 1/420 bottom mounting point with ARRI lacating pin pattern
  • 2 x M4 bottom mounting points
  • 1 x 1/420 side mounting point with ARRI locating pin pattern
  • 2 x M4 side mounting points
• Mounting brackets
  • Blackmagic PYXIS monitor swivel mount included in kit
  • Fixed mount for Blackmagic PYXIS monitors included in kit
  • Blackmagic PYXIS monitor dovetail shoe included in kit
• Compatible cameras
  • Blackmagic PYXIS 6K
  • Blackmagic PYXIS 6K PL
  • Blackmagic PYXIS 6K EF
  • Blackmagic URSA Cine 12K LF
  • Blackmagic URSA Cine 17K 65
• Operating Systems
  • Mac 13.0 Ventura
  • Mac 14.0 Sonoma or later
  • Windows 10 and 11
• Included:
  • Blackmagic PYXIS Monitor
  • Blackmagic PYXIS ClipOn Sunshade
  • Blackmagic PYXIS Monitor Swivel Mount
  • Blackmagic PYXIS Monitor Fixed Mount and screws
  • Blackmagic PYXIS monitor Dovetail Shoe and screws
  • 1 x USBC Viewfinder Cable
