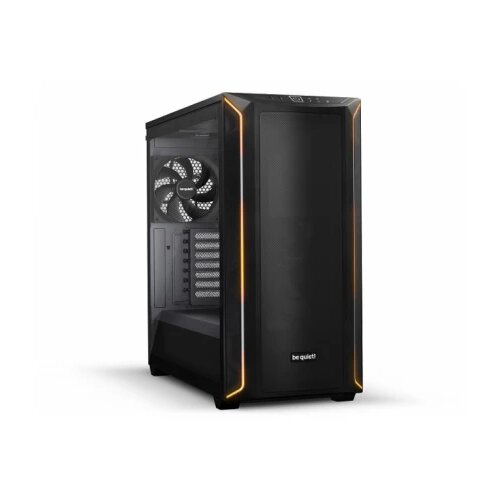

be quiet! SHADOW BASE 800 DX, ARGB case, black The Shadow Base 800 DX Black is an airflowoptimized midtower case with ARGB LEDs that offers quiet operation with space for large components such as 420mm radiators, long graphics cards or EATX motherboards.
Features:
- Outstanding high airflow thanks to open mesh design
- 3 Pure Wings 3 140mm PWM fans provide high airflow with quiet operation
- Spacious design with enough room even for the largest components
- Subtle ARGB lighting with integrated ARGB control
- Easy and toolfree installation of HDDs and SSDs
- Easy to use cable management for a clean and tidy look
- Tinted side window made of tempered glass allows a great insight
- PCI slots: 7
Dimensions, weight, material:
- Color: black
- Case dimensions excl. feet (L x W x H): 550 x 247 x 503 mm
- Case dimensions incl. feet (L x W x H): 550 x 247 x 522 mm
- Weight: 11.8 kg
- Material: steel, plastic, glass
Form factor / motherboard compatibility:
- Form factor PSU: ATX PS/2
- Motherboard compatibility: EATX / ATX / MATX / MiniITX
Maximum fan installation:
- Maximum fans: 8
- Top: 3x 140 / 3x 120 mm
- Front: 3x 140 / 3x 120 mm
- Rear: 1x 140 / 1x 120 mm
- Bottom: 1x 140 / 1x 120 mm
Preinstalled fans:
- Fan front: 1x Pure Wings 3, 140 mm PWM
- Fan rear: 1x Pure Wings 3, 140 mm PWM
- Fan top: 1x Pure Wings 3, 140 mm PWM
- Dimensions (L x W x H): 140 x 140 x 25 mm
- Speed at 100% PWM / 12V: 1200 rpm
- Air flow at 100%: 57.4 / 97.5 CFM / m3/h
- Air pressure at 100% PWM / 12V: 0.96 mm H2O
- Noise level at 100% PWM / 12V: 21.9 dB(A)
- Voltage range: 5 13.2 V DC
- Power consumption: 3.6 W
- Rated current: 0.3 A
- Connector plug: 4pin PWM
- Life expectancy @ 25 °C: ca, 80000 h
Optional radiator installation:
- Top: 120 / 140 / 240 / 280 / 360 / 420 mm
- Front: 120 / 140 / 240 / 280 / 360 / 420 mm
- Rear: 120 mm
Power supply compatibility:
- Maximum dimensions excl. fan at the case bottom: 305 mm
- Maximum dimensions incl. fan at the case bottom: 260 mm
Graphics card compatibility:
- With HDD cage (in height of the graphics card): 430 mm
- Without HDD cage (in height of the graphics card): 430 mm
- Maximum PCI slots with vertical graphics card: 7
Drive capacity:
- 3.5" slots (included): 2
- 3.5" slots (max.): 2
- 2.5" slots (included): 4
- 2.5" slots (max.): 8
Cooling:
- Max. installation height of the CPU cooler: 180 mm
- Air channels: Front / Top / Rear / Bottom
I/O Panel:
- 1x USB TypeC 3.2 Gen. 2
- 2x USB TypeA 3.2 Gen 1
- 1x HDAudio
Isolation and damping:
- Side panel noise insulated
- Decoupled HDD cages
- Decoupled fans
- Decoupled power supply
