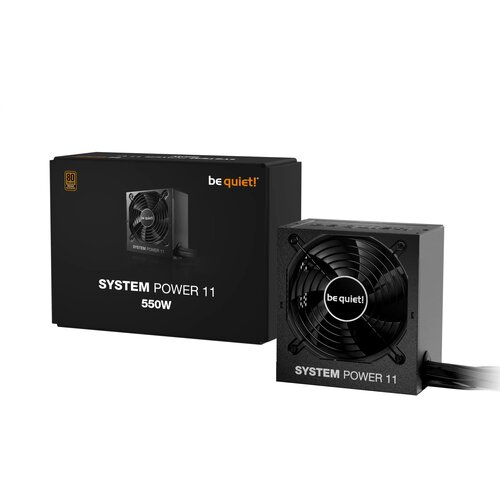

Be Quiet! System Power 11 550W power supply unit 20+4 pin ATX ATX Black cijene
Technical details Sustainability certificates: ENERGY STAR, ErP Design Cooling type: Active Fan diameter: 12 cm On/off switch: Yes Product colour: Black Number of fans: 1 fan(s) Fan speed: 0 1800 RPM Power Power protection features: Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage, Surge & inrush Input current: 4 A AC input voltage: 200 240 V Total power: 550 W Power factor: 0.98 AC input frequency: 50 Hz Efficiency: 89.7% Combined power (+3.3V): 120 W Combined
Položaj proizvoda u cjenovnom razreduPrikazan je tvoj odabrani proizvod te artikli koje kupci najčešće biraju u kategoriji Napajanja. Graf prikazuje kako se potražnja mijenja kroz različite cjenovne razrede. Prilagodi prikaz TOP 10 proizvoda svom budžetu odabirom cjenovnog razreda — Jeftiniji / Osnovni / Premium — ili odabirom brenda.
Opis i karakteristike
Technical details Sustainability certificates: ENERGY STAR, ErP
Design Cooling type: Active Fan diameter: 12 cm On/off switch: Yes Product colour: Black Number of fans: 1 fan(s) Fan speed: 0 1800 RPM
Power Power protection features: Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage, Surge & inrush Input current: 4 A AC input voltage: 200 240 V Total power: 550 W Power factor: 0.98 AC input frequency: 50 Hz Efficiency: 89.7% Combined power (+3.3V): 120 W Combined power (+12V): 550 W Max output current (12V): 0.3 A Combined power (12V): 3.6 W Max output current (+12V1): 45.83 A Max output current (+5V): 20 A Max output current (+5Vsb): 3 A Combined power (+5Vsb): 15 W Combined power (+5V): 120 W Hold time: 16.86 ms Max output current (+3.3V): 20 A Number of +12V rail(s): 1
Weight & dimensions Width: 150 mm Depth: 86 mm Height: 140 mm Weight: 1.92 kg
Performance Power supply unit (PSU) form factor: ATX Noise level: 24.2 dB Purpose: PC ATX version: 3.1 80 PLUS certification: 80 PLUS Bronze Mean time between failures (MTBF): 100000 h EPS version: 2.92 Bearing technology: Rifle
Packaging data Package type: Box Package depth: 268 mm Package weight: 2.3 kg Package height: 97 mm Package width: 195 mm
Certificates Waste Electrical and Electronic Equipment (WEEE) compliance: Yes Compliance certificates: UKCA, WEEE, CB, RoHS, CE, TV mark
Ports & interfaces PCI Express power connectors (6+2 pin): 2 Peripheral (Molex) power connectors (4pin): 1 Cabling type: NonModular Number of SATA power connectors: 5 CPU P4 connector (4pin): 1 CPU power connector (4+4 pin): Yes Motherboard power connector: 20+4 pin ATX PCI Express power connectors (12pin): 1
Other features Screws included: Yes Cable ties included: Yes
Logistics data Products per shipping (inner) case: 6 pc(s) Shipping (inner) case length: 55.6 cm Shipping (inner) case width: 31.1 cm Shipping (inner) case height: 21.8 cm Shipping (inner) case gross weight: 14.9 kg
Prijavi pogrešku
Napajanje
Obilk napajanja
ATX
Ulazna struja (A)
4 A
Efikasnost (%)
89.7
Vrijeme držanja (ms)
16.86
Funkcije zaštite
Zaštita od prejake struje, Zaštita od preniskog napona, Surge & inrush, Prekomjereno zagrijavanje, Zaštita od prevelike snage, Zaštita od kratkog spoja, Zaštita od previsokog napona
Faktor snage
0.98
Kombinirana snaga (+3,3V) (W)
120
Kombinirana snaga (+12V) (W)
550
Kombinirana snaga (+5V) (W)
120
Kombinirana snaga (-12V) (W)
3.6
Kombinirana snaga (+5Vsb) (W)
15
Max output current (+3.3V) (A)
20
Max output current (+5V) (A)
20
Max output current (-12V) (A)
0.3
Max output current (+5Vsb) (A)
3
Ulazna frekvencija izmjenične struje (Hz)
50 Hz
Ulazni napon izmjenične struje (V)
200 - 240
Max output current (+12V1) (A)
45.83
Ukupna snaga (W)
550
Broj vodova s naponom +12V
1
Dizajn
Broj ventilatora (ventilatori)
1
Prekidač za uključivanje/isključivanje
Tip hlađenja
Aktivno
Promjer ventilatora (mm)
12 cm
Brzina ventilatora (RPM)
0 - 1800 RPM
Značajke
Boja proizvoda
Crno
Certifikati
Usklađenost s Direktivom o otpadnoj električnoj i elektroničkoj opremi (OEEO)
Shoptok je sajt za usporedbu cijena i proizvoda koji vam omogućava da brzo i lako pronađete Be Quiet! System Power 11 550W power supply unit 20+4 pin ATX ATX Black po najpovoljnijoj cijeni u trgovinama Electronic4you, Tia mobiteli. Naš cilj je da kupci budu što bolje informirani o ponudi na tržištu Hrvatske. Vrlo lako ćete pronaći željeni proizvod, cijene i akcije za kategoriju Napajanja, ne morate lutati od sajta do sajta za PC komponente — sve vam je na jednom mjestu. Naši operateri svakodnevno ažuriraju cijene, ali je potrebno da provjerite cijenu i dostupnost kod trgovine. Shoptok ne može jamčiti potpunu točnost specifikacija i slika za Be Quiet! System Power 11 550W power supply unit 20+4 pin ATX ATX Black. Prije kupovine, provjerite podatke na sajtu trgovine
