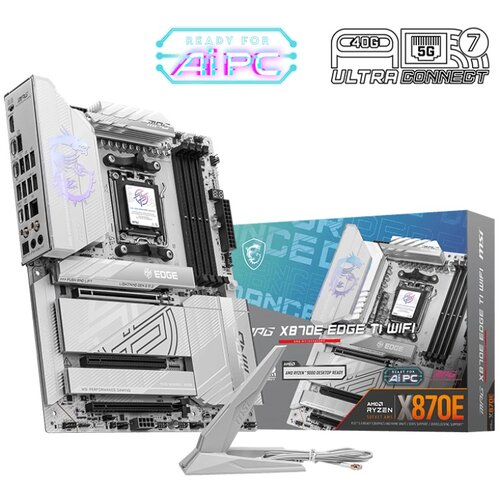

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX cijene

Processor
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Onboard graphics card: No

Features
Audio output channels: 7.1 channels
PC health monitoring: CPU, Temperature, Voltage, Fan
Motherboard chipset family: AMD
Product colour: White
Motherboard form factor: ATX
Motherboard chipset: AMD X870E

Memory
Supported memory clock speeds: 4800 MHz, 5600, 8400
Maximum internal memory: 256 GB
Memory slots type: DIMM
Memory channels: Dualchannel
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 8400 MHz
ECC ompatibility: NonECC

Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm

Network
Bluetooth: Yes
LAN controller: Realtek RTL8126
WiFi standards: WiFi 4 (802.11n), 802.11g, 802.11b, WiFi 6E (802.11ax), WiFi 5 (802.11ac), WiFi 7 (802.11be), 802.11a, WiFi 6 (802.11ax)
Bluetooth version: 5.4
WiFi: Yes
Ethernet LAN: Yes
Top WiFi standard: WiFi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet

Internal I/O
EPS power connector (8pin): Yes
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 2.0 connectors: 4
CPU fan connector: Yes
Total number of SATA connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 5, 10, 1
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 8

Rear panel I/O ports
DisplayPorts quantity: 2
S/PDIF out port: Yes
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 5
USB4 Gen 2x2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
HDMI version: 2.1
Microphone in: Yes

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
4th M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
