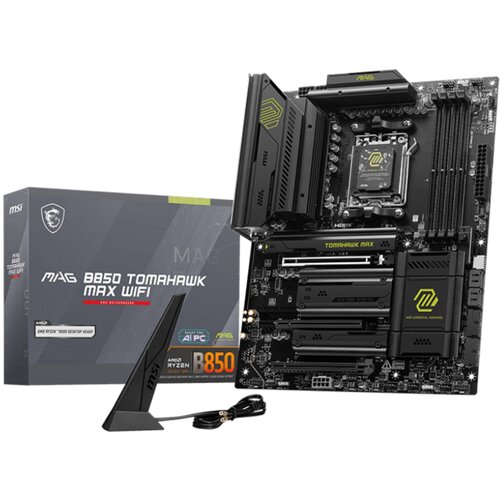

MSI MAG B850 TOMAHAWK MAX WIFI motherboard AMD B850 Socket AM5 ATX cijene

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
Onboard graphics card: No

Features
Audio output channels: 7.1 channels
Product colour: White
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD B850

Memory
ECC ompatibility: NonECC
Supported memory types: DDR5SDRAM
Memory channels: Dualchannel
Supported memory clock speeds: 4800, 8400, 5600
Number of memory slots: 4
Memory slots type: DIMM
Maximum internal memory: 256 GB
Supported memory clock speed (max): 8400 MHz

Weight & dimensions
Depth: 304.8 mm
Width: 243.8 mm

Network
Ethernet LAN: Yes
WiFi standards: 802.11a, WiFi 6 (802.11ax), WiFi 4 (802.11n), 802.11g, WiFi 5 (802.11ac), WiFi 7 (802.11be), WiFi 6E (802.11ax), 802.11b
WiFi: Yes
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Top WiFi standard: WiFi 7 (802.11be)

Internal I/O
Number of CPU fan connectors: 6
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
USB 2.0 connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0
Supported storage drive interfaces: M.2, Micro SATA III
Number of storage drives supported: 8
RAID support: Yes
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 3

Expansion slots
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 22110
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
