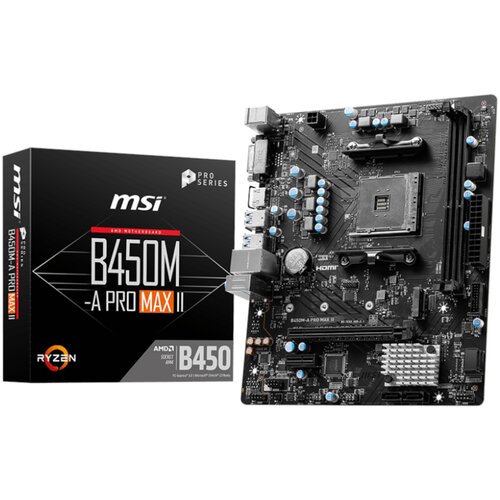

MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX cijene

Processor
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 5
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Supported processor sockets: Socket AM4

Graphics
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 7 x64, Windows 10 x64
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset: AMD B450

Memory
Unbuffered memory: Yes
Memory slots type: DIMM
Memory channels: Dualchannel
Supported memory clock speeds: 2800, 2667, 3733, 3066, 3866, 3200, 3000, 2933, 3600, 3466, 4133, 4000 MHz
Maximum internal memory: 64 GB
Number of memory slots: 2
Supported memory types: DDR4SDRAM

Weight & dimensions
Depth: 236 mm
Width: 200 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: No
Ethernet LAN: Yes

Internal I/O
Front panel connector: Yes
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
TPM connector: Yes
Chassis intrusion connector: Yes
Parallel connector: Yes
USB 2.0 connectors: 4
CPU fan connector: Yes
Serial port headers: 1

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
Ethernet LAN (RJ45) ports: 1
Microphone in: Yes
USB connector type: USB TypeA
HDMI ports quantity: 1
HDMI version: 1.4
USB 2.0 ports quantity: 2
Headphone outputs: 1
PS/2 ports quantity: 2
DVID ports quantity: 1

Expansion slots
PCI Express x1 (Gen 2.x) slots: 1
PCI Express x16 slots: 1

Other features
Quick installation guide: Yes
