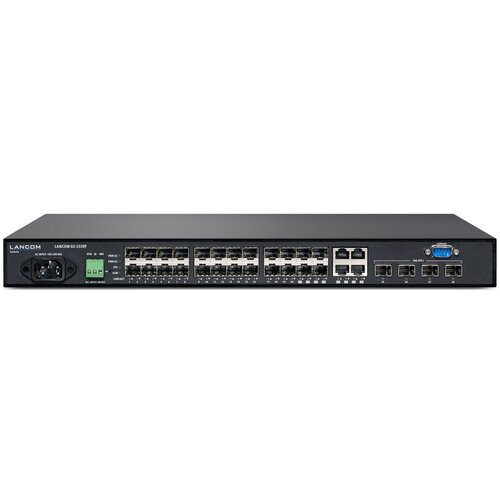

LANCOM GS-2328F Managed L3 Gigabit Ethernet (10 /100 /1000) 1U Black cijene

Design
Product colour: Black
Form factor: 1U
LED indicators: Yes
Number of fans: 2 fan(s)
Rack mounting: Yes
Housing material: Metal

Power
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz
Power consumption (max): 39 W

Security
Security algorithms: SSH, HTTPS, 802.1x RADIUS, SSL/TLS
DHCP features: DHCP client
Access Control List (ACL): Yes
SSH/SSL support: Yes
IGMP snooping: Yes
Authentication: Guest VLAN, Portbased authentication
Authentication type: RADIUS, TACACS+
IGMP proxy: Yes

Operational conditions
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 10 90%

Management features
Webbased management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L3
Switch type: Managed
System event log: Yes
Configuring Location Settings (CLI): Yes

Weight & dimensions
Weight: 3.1 kg
Height: 44 mm
Depth: 211 mm
Width: 442 mm

Network
Networking standards: IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z
Spanning tree protocol: Yes
Virtual LAN features: Portbased VLAN, Tagged VLAN, Stacked VLAN, Private VLAN
Broadcast storm control: Yes
Number of VLANs: 4096
VLAN support: Yes
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASET
Cable length detection: Yes
Rate limiting: Yes
Link aggregation: Yes
10G support: Yes
Port mirroring: Yes
Flow control support: Yes

Performance
Firmware upgradeable: Yes

Packaging data
Package weight: 3.85 kg
Package depth: 534 mm
Mounting brackets included: Yes
Package width: 470 mm
Package height: 100 mm

Packaging content
Quick start guide: Yes
Cables included: Serial, AC

Protocols
Management protocols: SNMP v1, v2c, v3
Switching protocols: IGMP v1, v2, v3
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
SFP+ module slots quantity: 4
Console port: RS232
Combo SFP ports quantity: 4
Basic switching RJ45 Ethernet ports quantity: 20
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber optic connector: SFP+, SFP
Gigabit Ethernet (copper) ports quantity: 20

Logistics data
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
Customs product code (TARIC): 85176200

Data transmission
Switching capacity: 128 Gbit/s
Storeandforward: Yes
MAC address table: 32000 entries
Throughput: 95.23 Mpps
Jumbo frames support: Yes
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 256

Optical fiber
Fiber ethernet cabling technology: 1000BASELX, 10GBASESX, 1000BASESX
