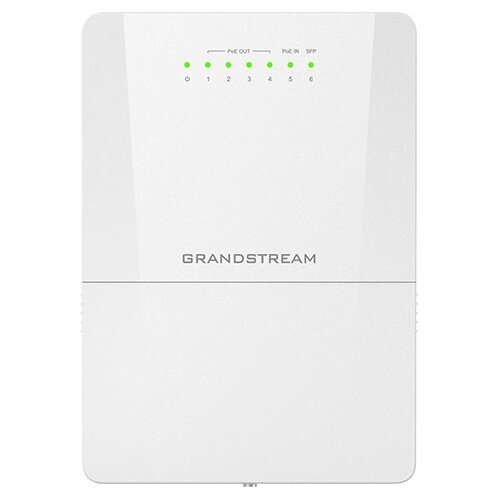

Grandstream Networks GWN7710R network switch Managed L2 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) White cijene

Design
LED indicators: Status
Product colour: White
Rack mounting: No

Power
Power supply included: Yes
DC input voltage: 12 57 V
Power source: DC

Security
Loop protection: Yes
IGMP snooping: Yes

Operational conditions
Storage relative humidity (HH): 10 95%
Storage temperature (TT): 40 70 C
Operating temperature (TT): 40 60 C

Management features
Switch layer: L2
Quality of Service (QoS) support: Yes
Webbased management: Yes
Switch type: Managed

Weight & dimensions
Weight: 750 g
Height: 52 mm
Width: 150 mm
Depth: 210 mm

Network
Networking standards: IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
VLAN support: Yes
Copper ethernet cabling technology: 10BASET, 100BASEFX, 100BASETX, 1000BASET
Auto MDI/MDIX: Yes
Autonegotiation: Yes
Port mirroring: Yes
Rate limiting: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
10G support: No

Performance
Fanless: Yes

Packaging data
Package depth: 466 mm
Package height: 258 mm
Package width: 286 mm
Package weight: 1.35 kg

Packaging content
User guide: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 5

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Number of queues: 4
Storeandforward: Yes
Forwarding rate: 7.44 Mpps
Packet buffer memory: 1 MB
MAC address table: 2000 entries
Switching capacity: 10 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 16000

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 24 W
Total Power over Ethernet (PoE) budget: 48 W
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE): Yes

Safety warning
Warnings: Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.
