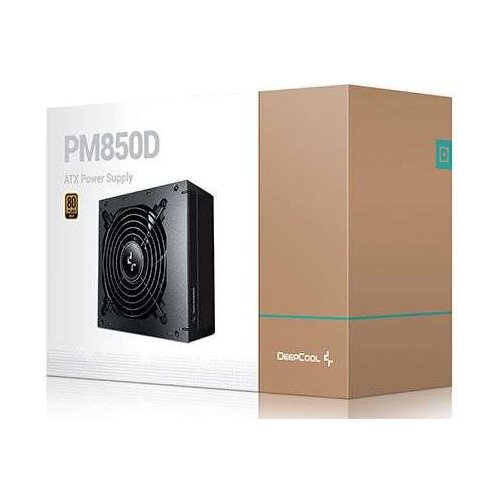

DeepCool PM850D power supply unit 850 W 20+4 pin ATX ATX Black cijene

Design
On/off switch: Yes
Product colour: Black
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)

Power
AC input frequency: 47 63 Hz
Power protection features: Over current, Short circuit, Over voltage, Over power
Combined power (+5V): 110 W
Combined power (+3.3V): 110 W
AC input voltage: 100 240 V
Efficiency: 90%
Total power: 850 W
Power Factor Correction (PFC) type: Active
Input current: 10 A
Combined power (12V): 3.6 W
Combined power (+12V): 846 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Max output current (+12V): 70.5 A
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Max output current (12V): 0.3 A
Hold time: 16 ms

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Height: 86 mm
Depth: 140 mm
Width: 150 mm

Performance
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Bearing technology: Hypro Bearing
ATX version: 2.4
Purpose: PC

Packaging data
Package type: Box

Packaging content
Cables included: AC

Ports & interfaces
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4pin): 1
Cabling type: NonModular
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 2

Logistics data
Harmonized System (HS) code: 84733020
