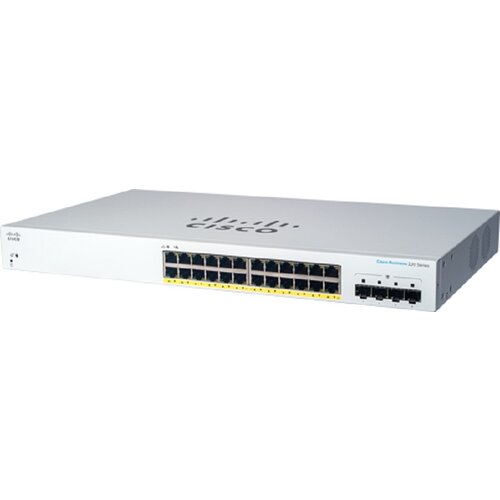

Cisco CBS220 SMART 24-PORT GE POE /4X1G SFP cijene

Design
Reset button: Yes
Form factor: 1U
LED indicators: Yes
Number of fans: 1 fan(s)
Rack mounting: Yes
Product colour: White

Power
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz

Security
IGMP snooping: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
DHCP features: DHCP client
Authentication type: IEEE 802.1x, RADIUS
Loop protection: Yes
Security algorithms: SSH, SSH2, SSL/TLS
MAC address filtering: Yes
Access Control List (ACL): Yes

Operational conditions
Operating temperature (TT): 0 50 C
Storage temperature (TT): 20 70 C
Operating relative humidity (HH): 10 90%
Heat dissipation: 833.59 BTU/h
Storage relative humidity (HH): 10 90%

Management features
Switch layer: L2
System event log: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Webbased management: Yes

Weight & dimensions
Width: 440 mm
Weight: 2.75 kg
Depth: 203 mm
Height: 44 mm

Network
Port mirroring: Yes
10G support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Number of VLANs: 256
Spanning tree protocol: Yes
Headofline (HOL) blocking: Yes
Auto MDI/MDIX: Yes
VLAN support: Yes
Flow control support: Yes
IP routing: Yes
Networking standards: IEEE 802.1x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.1w, IEEE 802.3u
Link aggregation: Yes
Broadcast storm control: Yes

Performance
Flash memory: 64 MB
Internal memory: 256 MB
Builtin processor: Yes
Firmware upgradeable: Yes

Protocols
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP

Ports & interfaces
SFP module slots quantity: 4
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 24

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Packet buffer memory: 4.1 MB
Forwarding rate: 41.66 Mpps
Jumbo frames: 9216
Number of queues: 8
MAC address table: 8192 entries
Jumbo frames support: Yes
Switching capacity: 56 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes

Multicast features
Multicast MAC address table: 8192 entries
Multicast support: Yes
