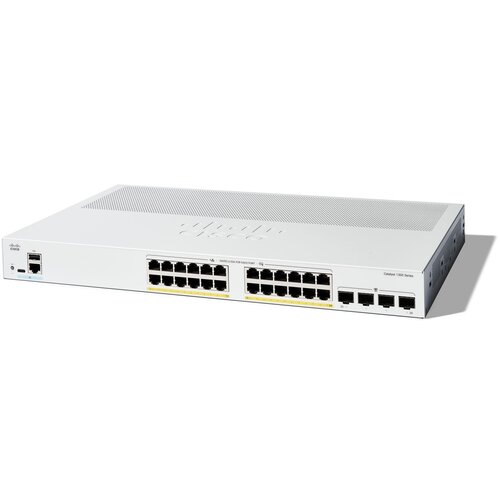

Cisco CATALYST 1300 24-PORT GE POE cijene

Design
Rack mounting: Yes
Product colour: Grey
Reset button: Yes

Power
AC input voltage: 100 220 V
Power source: AC
AC input frequency: 50/60 Hz
Power plug type: Type C
Power consumption (typical): 27.5 W

Security
Security algorithms: SNMPv3, SSH2, SNMP, SSH, SNMPv2, HTTPS
SSH/SSL support: Yes
DHCP features: DHCP server, DHCP client, DHCP relay, DHCP autoconfig, DHCP snooping
IGMP snooping: Yes
Access Control List (ACL): Yes
IGMP proxy: Yes
Authentication type: RADIUS, TACACS+
Access Control List (ACL) rules: 1024
Queue scheduling algorithms: Weighted Round Robin (WRR)
Authentication: MACbased authentication, Webbased authentication
DoS attack prevention: Yes

Operational conditions
Storage relative humidity (HH): 10 90%
Heat dissipation: 795.2 BTU/h
Storage temperature (TT): 25 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 5 50 C

Management features
Switch type: Managed
Quality of Service (QoS) support: Yes
Switch layer: L2/L3
MIB support: Y
Webbased management: Yes
Configuring Location Settings (CLI): Yes

Weight & dimensions
Weight: 3.53 kg
Depth: 444.5 mm
Width: 298.7 mm
Height: 43.9 mm

Network
Broadcast storm control: Yes
Networking standards: IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3an
Cable types supported: Cat5e
Rate limiting: Yes
Link aggregation: Yes
Port mirroring: Yes
Policybased routing: Yes
Virtual LAN features: Private VLAN, Voice VLAN
Spanning tree protocol: Yes
Headofline (HOL) blocking: Yes
VLAN support: Yes
QinQ implementation: Selective QinQ

Performance
Mean time between failures (MTBF): 698220 h
Builtin processor: Yes
Processor frequency: 1.4 MHz
Plug and Play: Yes
Internal memory: 1000 MB
Memory type: DDR4SDRAM
Flash memory: 512 MB

Packaging data
Package depth: 575.1 mm
Package height: 105.9 mm
Package width: 430 mm
Package weight: 5.77 kg

Protocols
IPv4 & IPv6 features: IPv6 SNMP, IPv6 Telnet, IPv6 SSH, IPv6 TFTP, ICMPv6
GARP VLAN Registration Protocol (GVRP): Yes

Ports & interfaces
SFP module slots quantity: 4
Basic switching RJ45 Ethernet ports quantity: 24
Console port: RJ45/USB TypeC
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Country of origin: China

Data transmission
Packet buffer memory: 1.5 MB
MAC address table: 16000 entries
Number of static routes: 990
Switching capacity: 56 Gbit/s
Jumbo frames support: Yes
Number of queues: 8
Static route: Yes
Jumbo frames: 9000

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 195 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24

Multicast features
Multicast support: Yes
