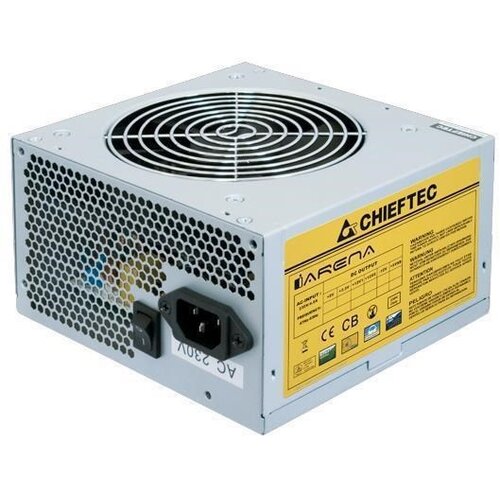

Chieftec iArena GPA-700s power supply unit 700 W 20+4 pin ATX PS /2 Silver cijene

Design
Fan diameter: 12 cm
Cooling type: Active
Product colour: Silver
Number of fans: 1 fan(s)
Fan location: Top

Power
Max output current (+5Vsb): 2.5 A
Max output current (12V): 0.3 A
Combined power (+5Vsb): 12.5 W
AC input voltage: 200 240 V
AC input frequency: 47 63 Hz
Max output current (+5V): 22 A
Input current: 5 A
Combined power (+5V): 130 W
Max output current (+3.3V): 22 A
Power protection features: Under voltage, Overload, Short circuit, Over voltage
Power factor: 0.9
Efficiency: 80%
Total power: 700 W
Combined power (12V): 3.6 W
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 648 W
Max output current (+12V): 50 A

Weight & dimensions
Weight: 1.44 kg
Width: 140 mm
Height: 87 mm
Depth: 150 mm

Performance
Purpose: PC/Server
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3

Packaging data
Package type: Box
Package weight: 1.57 kg

Certificates
Compliance certificates: CE, CB, EAC

Ports & interfaces
Floppy drive power connector: 1
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 55 cm
Peripheral (Molex) power cable length: 800, 500 mm, 650
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
Motherboard power cable length: 50 cm
Floppy disk drive connector: Yes
Cabling type: NonModular
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4pin): 2
