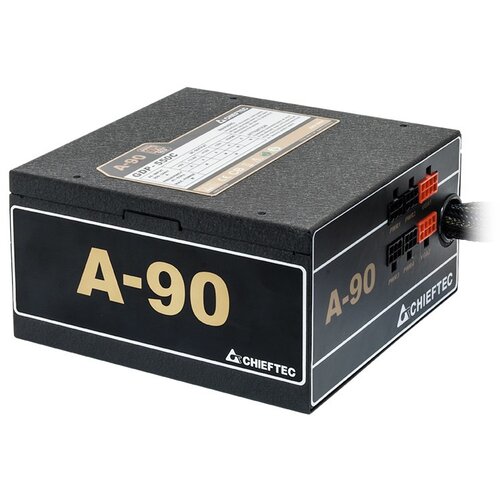

Chieftec GDP-550C power supply unit 550 W 20+4 pin ATX PS /2 Black cijene

Technical details
Sustainability certificates: RoHS

Design
Product colour: Black
Fan diameter: 14 cm

Power
Max output current (+3.3V): 20 A
Power protection features: Short circuit, Over voltage, Overheating, Overload, Under voltage, Over current
Max output current (+5V): 20 A
Combined power (+3.3V): 110 W
Total power: 550 W
AC input frequency: 47 63 Hz
Max output current (+5Vsb): 2.5 A
Combined power (+5V): 110 W
AC input voltage: 200 240 V
Input current: 4 A
Power Factor Correction (PFC) type: Active
Max output current (+12V1): 45 A
Max output current (12V): 0.3 A

Weight & dimensions
Height: 87 mm
Depth: 160 mm
Width: 150 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3

Ports & interfaces
Peripheral (Molex) power connectors (4pin): 3
PCI Express power connectors (6+2 pin): 2
Cabling type: SemiModular
Floppy drive power connector: 1
Number of SATA power connectors: 6
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Hazard pictogram(s): GHS09: Environmental hazard, GHS02: Flammable, GHS07: Harmful
