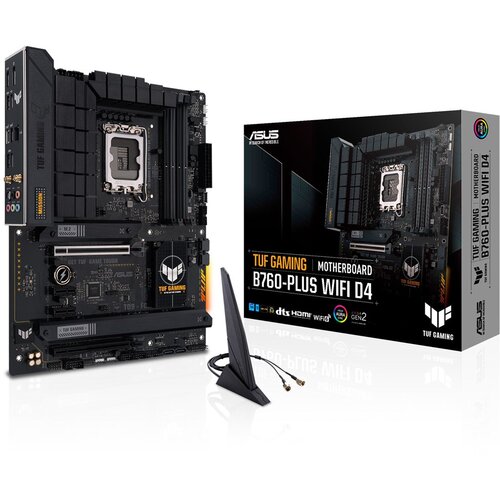

Asus TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX cijene

Processor
Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Processor socket: LGA 1700
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported
Onboard graphics card: No

Features
Power source type: ATX
Product colour: Black
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Motherboard form factor: ATX
Cooling type: Passive

Memory
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Memory channels: Dualchannel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR4SDRAM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Top WiFi standard: WiFi 6 (802.11ax)
Ethernet LAN: Yes
WiFi standards: WiFi 4 (802.11n), 802.11b, 802.11a, WiFi 6 (802.11ax), WiFi 5 (802.11ac), 802.11g
Bluetooth version: 5.2
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: Yes

Internal I/O
Number of chassis fan connectors: 4
USB 2.0 connectors: 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8pin): Yes
Thunderbolt headers: 1
CPU fan connector: Yes
Front panel connector: Yes
Peripheral (Molex) power connectors (4pin): 1
Front panel audio connector: Yes
ATX Power connector (24pin): Yes
Number of COM connectors: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 331 mm
Package weight: 1.98 kg
Package depth: 76 mm
Package height: 266 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 5, 0, 10, 1
Number of storage drives supported: 7
Number of HDDs supported: 4

Rear panel I/O ports
S/PDIF out port: Yes
DisplayPorts quantity: 1
USB 2.0 ports quantity: 1
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
HDMI version: 2.1
Linein: Yes
USB 3.2 Gen 2x2 TypeC ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
WiFiAP antenna jack: 2

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
