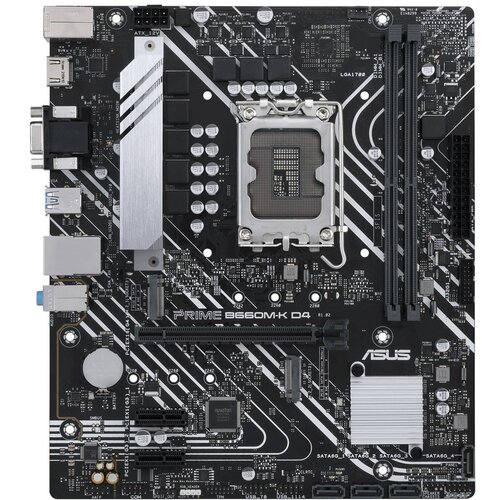

Asus PRIME B660M-K D4 Intel B660 LGA 1700 micro ATX cijene

Processor
Compatible processor series: Intel Core i5, Intel Celeron, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700

Features
Motherboard chipset: Intel B660
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 4000, 4800, 3000, 5333 MHz, 2933, 3600, 3733, 4400, 5000, 3400, 3466, 2400, 2800, 3200, 2666, 4266, 4600 MHz, 2133, 3333
Maximum internal memory: 64 GB
Memory channels: Dualchannel
Unbuffered memory: Yes
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Number of memory slots: 2

Weight & dimensions
Depth: 211 mm
Width: 244 mm
Height: 60 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel connector: Yes
S/PDIF out connector: Yes
Front panel audio connector: Yes
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
EPS power connector (8pin): Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of chassis fan connectors: 1
ATX Power connector (24pin): Yes
RGB LED pin header: Yes
Audio connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 5, 1, 10, 0
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ45) ports: 1
HDMI version: 2.1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
HDMI ports quantity: 1
VGA (DSub) ports quantity: 1
Headphone outputs: 3

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 819 g

Logistics data
Harmonized System (HS) code: 84733020
