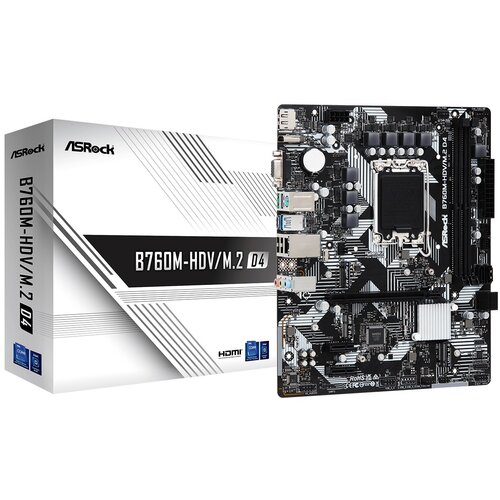

AsRock B760M-HDV /M.2 D4 Intel B760 LGA 1700 micro ATX cijene

Processor
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Core i5
Processor socket: LGA 1700
Processor manufacturer: Intel
Maximum number of SMP processors: 1

Graphics
Parallel processing technology support: Not supported
HDCP: Yes
Certification: FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

Features
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 Education x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Audio chip: Realtek ALC897

Memory
ECC ompatibility: NonECC
Supported memory clock speeds: 3200, 5333 MHz, 4400
Maximum internal memory: 64 GB
Number of memory slots: 2
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dualchannel
Supported memory types: DDR4SDRAM

Weight & dimensions
Width: 244 mm
Depth: 201 mm

Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
WiFi: No

Internal I/O
Front panel connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
USB 2.0 connectors: 3
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
TPM connector: Yes
EPS power connector (8pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 10, 5, 0, 1
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
VGA (DSub) ports quantity: 1
DisplayPorts quantity: 1
Linein: Yes
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
PS/2 ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
