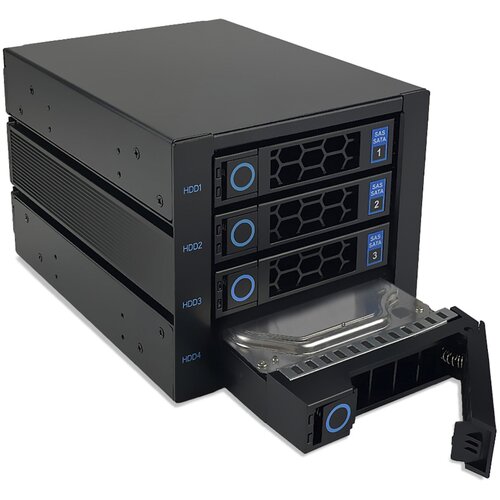

FANTEC WRC31416G Backplane for 4x 3.5/2.5 HDD / SSD

Backplane systems are used in servers and enable the easy installation or replacement of hard disks. Due to the plugin technology of hard disk plugin units, the hard disks are integrated into the system via plugin connections and not via cable connections, as is usually the case. This means that the hard disks can be replaced without tools and very easily, without having to open the server housing. The hotswap technology here additionally enables the exchange and replacement of hard disks during operation.

Features:

• SAS/SATA (6G) backplane for 4x 3.5"/2.5" HDD/SSD in a 3x 5.25" bay
• With a 80mm fan at the back (80 x 80 x 25 mm)
• Hard disk carrier. Housing made of metal / plastic
• Fast mounting and changing of hard disks by using hard disk carriers
• Hard disk carrier suitable for 3.5" or 2.5" HDD or SSD
• Suitable for RAID
• Plug & Play
• Hotswap
• LEDs for hard disk status indication
• Suitable for 3.5" and 2.5" SAS 6G
• For 3.5" and 2.5" SATA 6G suitable
• 4x LEDs hard disk access: green on / blue blinking data access
• SAS I,II,III 6G + SATA I,II,III 6G
• Enclosure, bays, front doors black
• Form factor: 3x 5.25" bay
• Connectors: 4x SAS / SATA 22pin connectors internal / 4x SAS / SATA 7pin connectors external
• dimensions: 146 x 211 x 126 mm
• Weight: 1.97 kg
